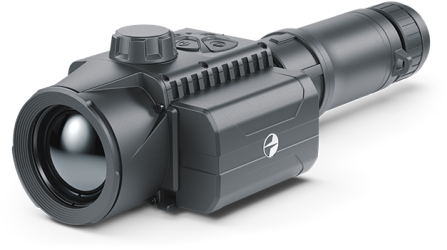

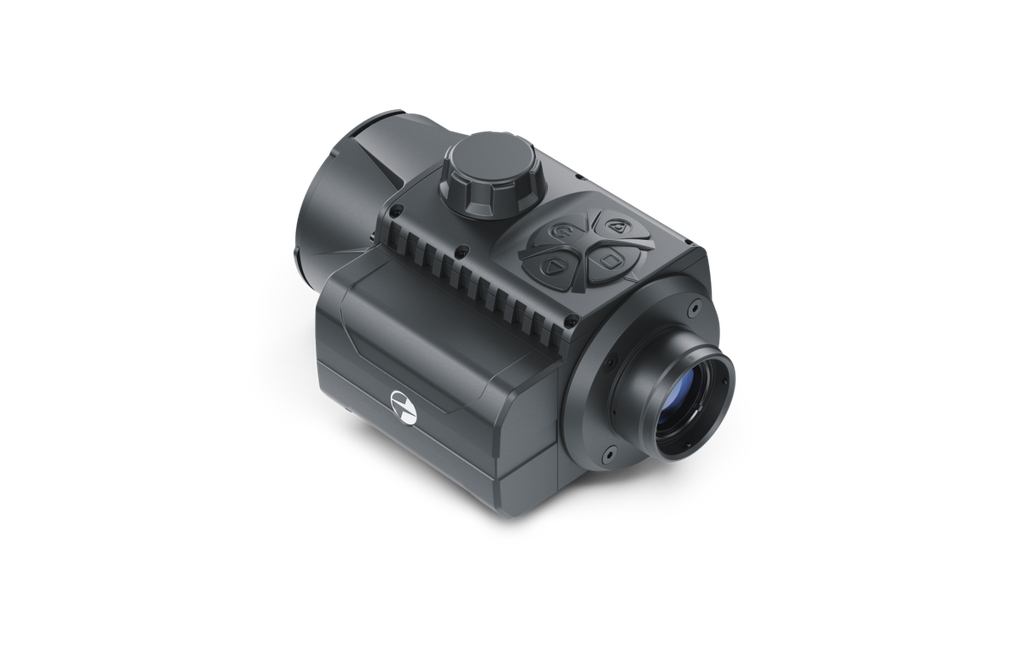

Pulsar KRYPTON XG50

Type of Microbolometer VOx Uncooled Microbolometer
Frame Rate, Hz 50
Microbolometer resolution, pixels 640×480
Pixel Pitch, µm 12
Spectral Sensitivity, µm 8-14
Display type AMOLED
Display Resolution total, pix. 1746×1000
Built-In Video Recorder Availability yes
Built-In Memory, Gb 16
Format of video clip *.mp4
Resolution of video clip 960×720
Format of photo files jpeg
Resolution of photo files 960×720
USB, type microUSB
The operation modes yes
Defective pixel repair option yes
Optical characteristics
Magnification, x 1
Recommended magnification of daylight optics, x 1.5-6
Lens diameter, mm 42
Lens focus, mm 50
Eyepiece Focus, mm 30
Relative aperture, D/f’ 1/1,2
Field of View,°, horizontal 8,7
Field of View, m@100m, horizontal 15.4
Minimum focusing distance, m 5
Eye Relief, mm
Exit Pupil, mm
Diopter adjustment, dptr.
Range of Detection, m
Range of detection, m (object = 1,7*0,5m) 2300
Power Supply
Power Supply 4.2-3.0
Battery type Li-Ion(18650)
Battery Life, hour 8
External Power Supply 5V(USB Type-B)
Physical & operational characteristics
Lens Material germanium
Body Material Magnesium Alloy
Operating Temp,°С -25/+50
Level of Protection (acc. to IEC 60529) IPX7
Waterproofness, yes/no waterproof
Calibration manual
automatic
semi-automatic
Shockresistance on rifled weapon, J 6000
Shockresistance on the airgun (calibres) 12
Mounting brackets for accessories weaver
Length, mm 143
Width, mm 93
Height, mm 76
Warranty period, year 3
